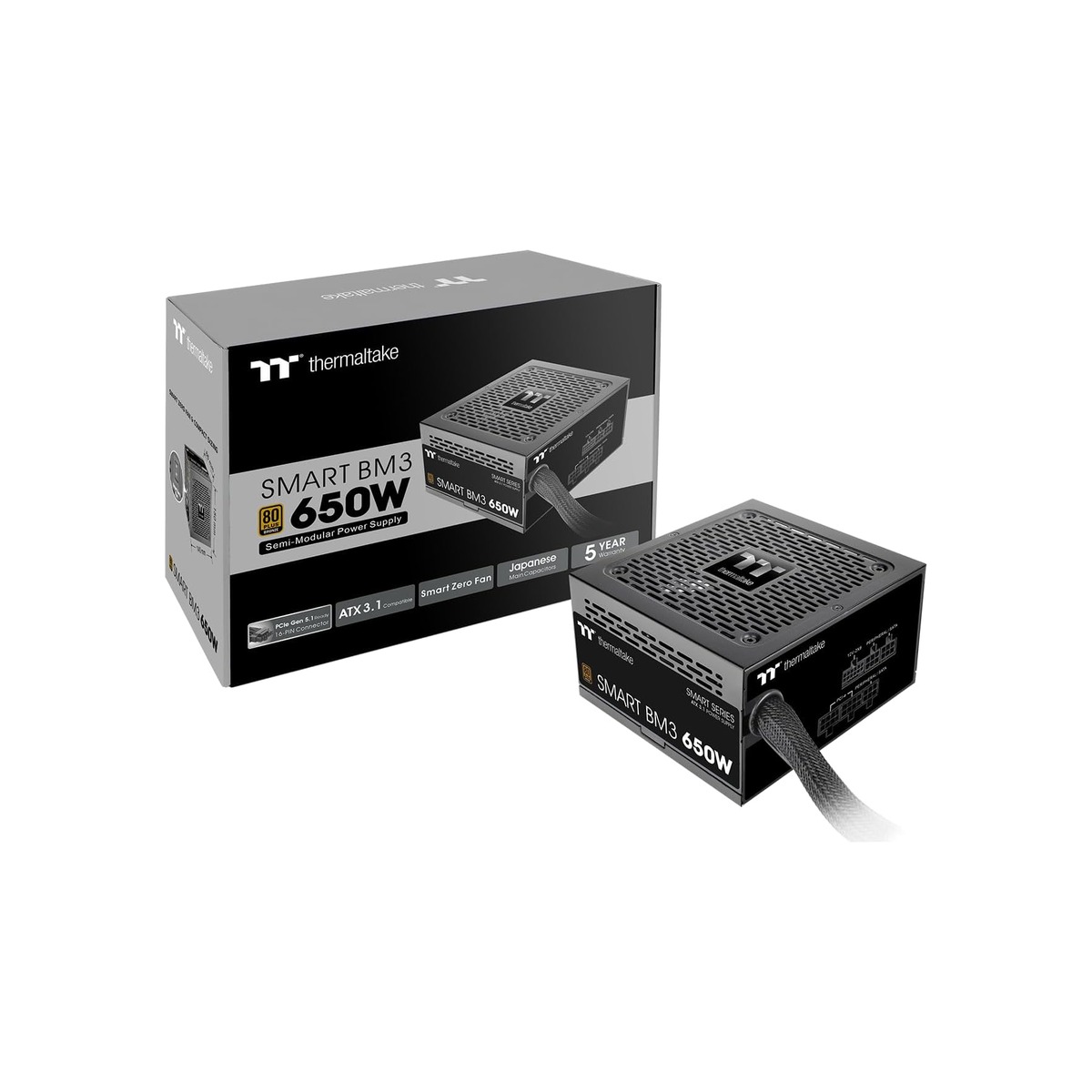

Thermaltake Smart BM3 650W 80Plus Bronze ATX 3.1 & PCIE 5 Ready Semi-Modular

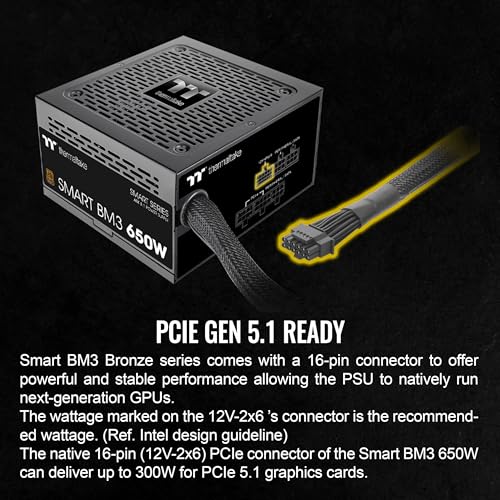

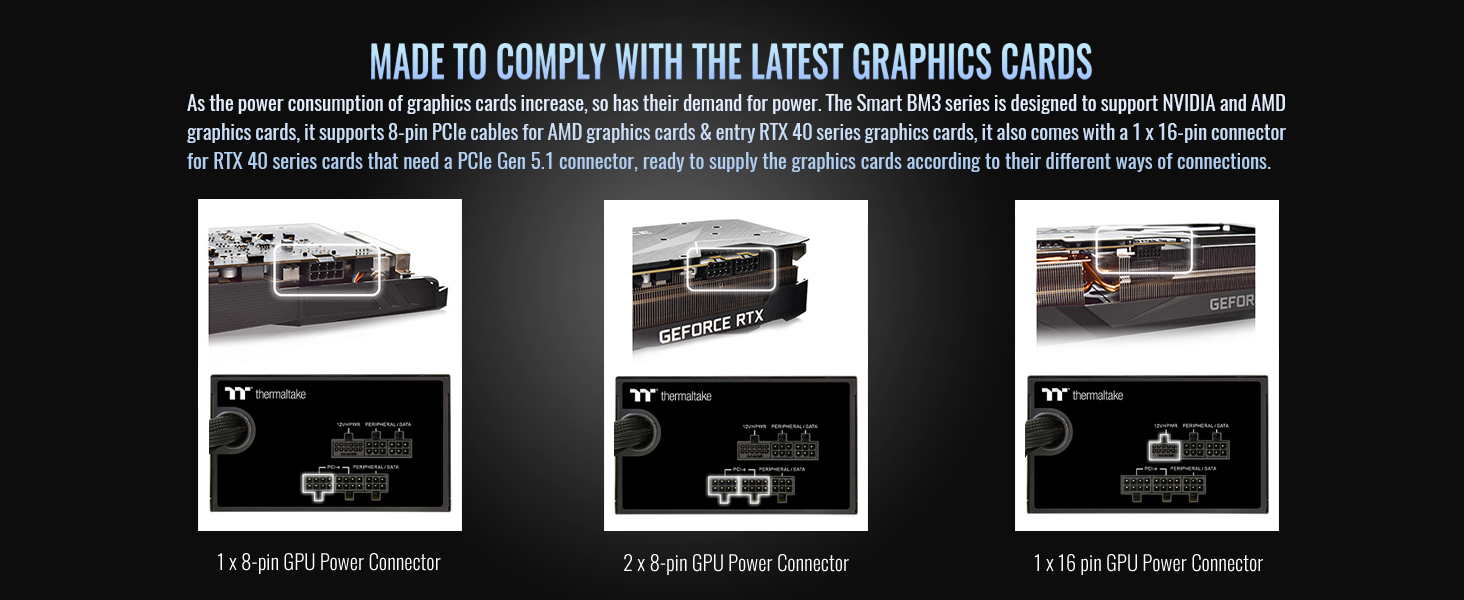

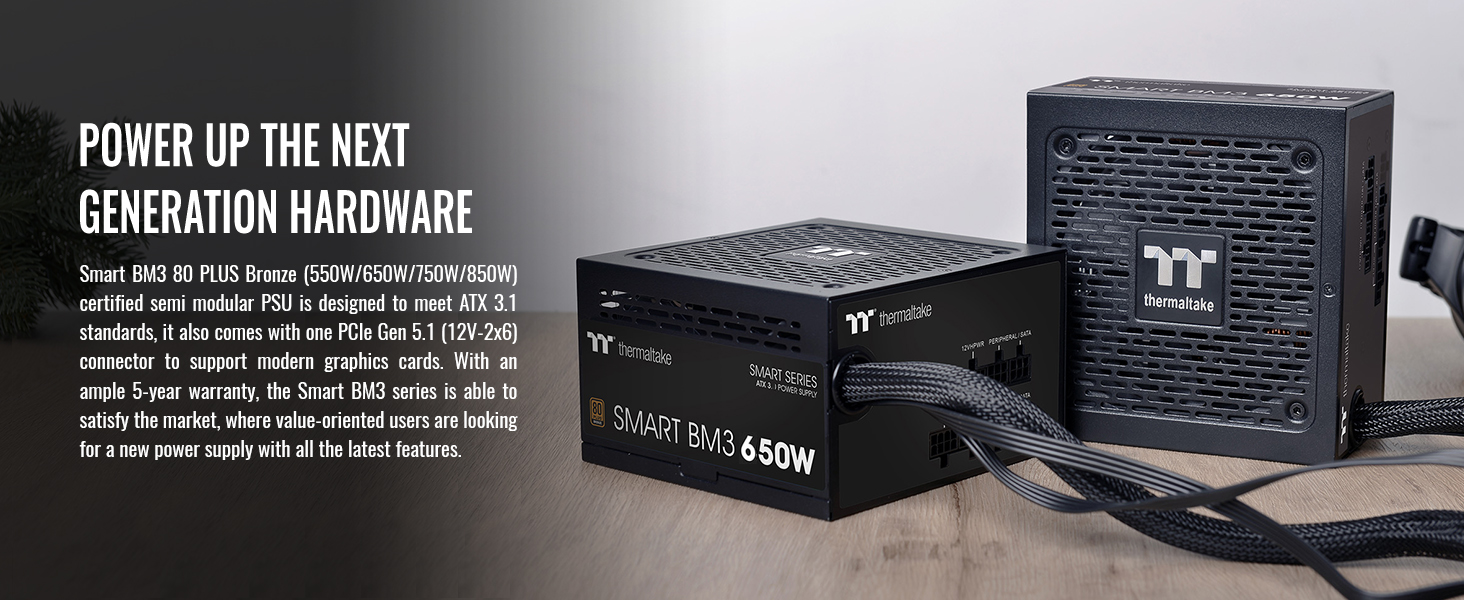

Smart BM3 80 PLUS Bronze certified semi modular PSU (650W/750W/850W) is designed to meet ATX 3.1 standards, it also comes with one PCIe Gen 5 (12V-2×6) connector to support modern graphics cards. With an ample 5-year warranty, the Smart BM3 series is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features. Featuring a 120mm FDB fan to deliver excellent airflow. Furthermore, with the Smart Zero Fan function the fan will not spin until the load exceeds 20% of the power supply, minimizing undesired noise. It also built with high quality Japanese main electrolytic capacitor greatly improves the power supplies durability. •P/N: PS-SPD-0650MNFABU-3 •MODEL: SPD-650AH2CLB •WATTS: 650W •MAX OUTPUT CAPACITY: 650W •COLOR: Black •DIMENSIONS: 150mm(W)x86mm(H)x140mm(D) •PFC (POWER FACTOR CORRECTION): Active PFC •POWER GOOD SIGNAL: 100-150 msec •HOLD UP TIME: 17msec •INPUT CURRENT: 15A-6A •INPUT FREQUENCY RANGE: 50Hz/60Hz •INPUT VOLTAGE: 100-240V~ •OPERATING TEMPERTURE: 5°C to + 40°C •OPERATING HUMIDITY: 20% to 85%,non-condensing •STORAGE TEMPERTURE: -40°C to + 55°C •STORAGE HUMIDITY: 10% to 95%, non-condensing •COOLING SYSTEM: 12cm FDB Fan •EFFICIENCY: Meet 80 PLUS® Bronze at 115Vac input. •MTBF: 100,000 hrs minimum •SAFETY APPROVAL: FCC/ICES/CB/cTUVus/S-mark •PCI-E 6+2PIN: 4 •PCI-E 12+4PIN: 1(300W) •PCI-E CONNECTOR: OCP/OVP/UVP/OPP/OTP/SCP

About this item

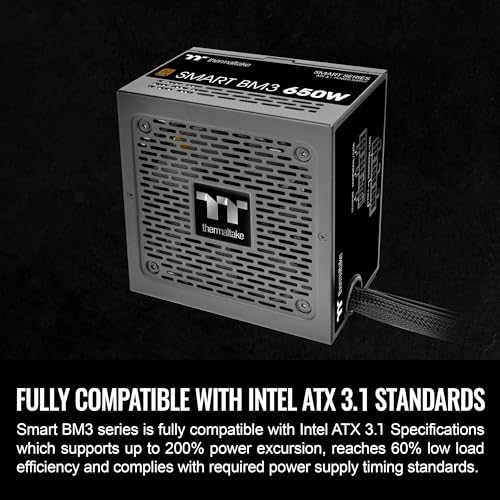

• 80Plus Bronze certified and fully compatible with Intel ATX 3.1 standards to power up next generation hardware
• PCIe Gen. 5 compliant
• High quality Japanese 105°C/221°F main capacitor

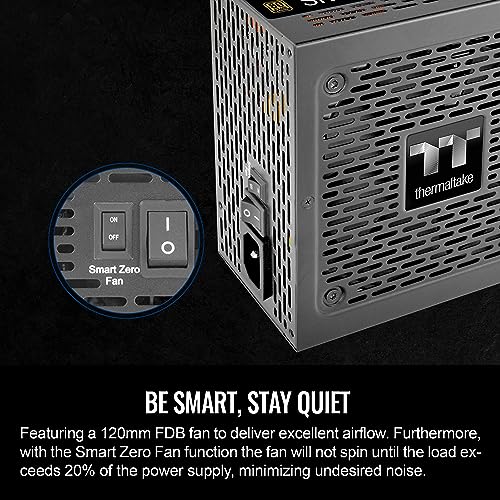

• 120mm fluid dynamic bearing fan with Smart Zero Fan function
• Built-in Industrial Grade Protection

Product description
